Cluttered Picking

PROJECT

The cluttered picking task is performed on the youBot in the B-it-bots lab and is divided into two parts:

  1. Perception
  2. Manipulation and navigation

This project contains the code to carry out the perception part of the pipeline. The input and outputs are as follows:

Input: images of the objects as perceived by the camera of the robot
Output: 4D pose of the object

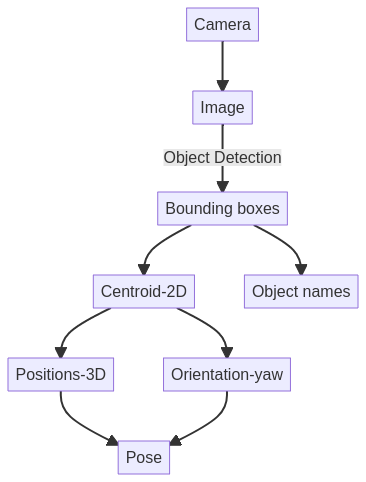

Perception pipeline

  • The robot perceives its environment and the data is published on the topics to which we subscribe to.
  • Once we get the image of the environment, object detection is carried out using Faster-RCNN and the object labels along with its bounding boxes are detected.
  • Then these 2D bounding boxes are used to calculate the centroid of the object which acts as a grasping position in 2D.
  • This 2D position is converted to 3D position and the yaw is also calculated, which combinedly gives us the 4D grasing pose of the object.
  • This process is looped over for the cluttered picking task.

Github repository: The repository can be found here
